Pot kerner 14x8-30x19 - SMP Drosler og Transformatorer

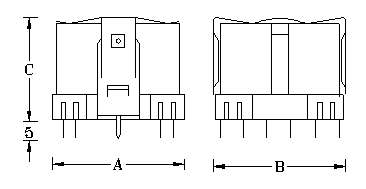

SMP DROSLER OG TRANSFORMATORER MED "POT-KERNER"
|
TYPE |
KERNE |
A (mm) |
B (mm) |
C (mm) |

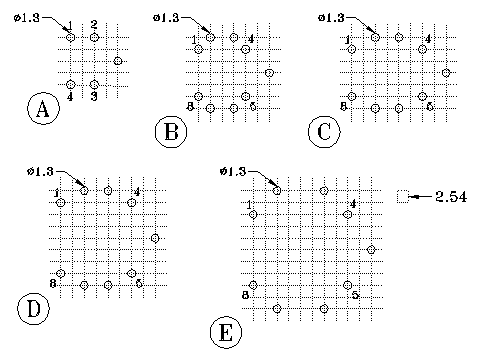

PRINT LAYOUT |
|
710 |
14x8 |
15,0 |
17,0 |
11,0 |
|
|
711 |
18x11 |
21,0 |
20,0 |
13,5 |
|
|
712 |
18x14 |
21,0 |
20,0 |
17,0 |
|
|
713 |
22x13 |
26,0 |
25,0 |
17,0 |
|
|
714 |
26x16 |
28,5 |
28,0 |
19,0 |
|
|
715 |
30x19 |
32,5 |
32,5 |
23,0 |
|
Varianter fremstilles efter ønske
